ASUS PRIME B860M-A - Motherboard, , micro-ATX, Dual-Channel, Supports up to 256GB DDR5 Memory

ASUS PRIME B860M-A | LGA1851

In stock

$199.04

* Taxes not included

$199.04

* Taxes not included

In stock

Units: 5

Pickup and delivery available the same day Monday to Saturday

If you buy now:

Pickup will be from 2pm Today in our El Dorado Store.

Brand: ASUS

Model: PRIME B860M-A

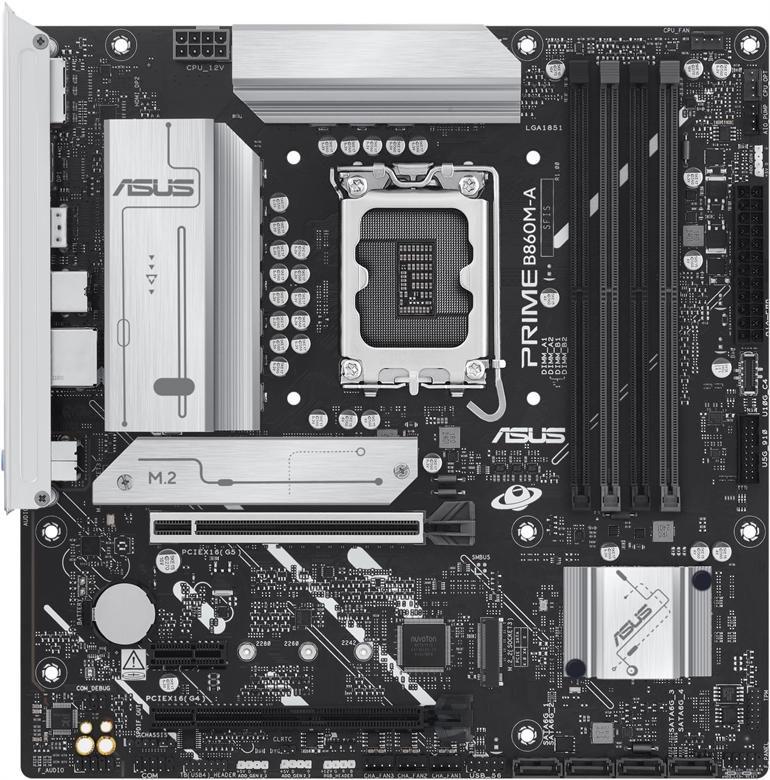

The ASUS PRIME B860M-A is a micro-ATX motherboard built for reliable and modern performance. Featuring the LGA1851 socket, it supports the latest Intel processors and up to 256GB of DDR5 memory in a dual-channel configuration. Perfect for building powerful and efficient PCs for both work and entertainment.

Do you like the brand? Click here to see more products of ASUS

How to buy this product?

1. Add the product to your cart and proceed to checkout
2. Select “pickup in a store” or “delivery to house or office”
3. Choose your payment method (Debit / Credit Card, Yappy or ACH Transfer) and complete your payment
4. After the payment you will receive an email with your delivery or pickup date

6 Related Products

Xtech CS850XTK08 - Power Supply, 700W, ATX12V (2.2)

$26.95

* Taxes not included

Logitech MK295 Silent - Keyboard and Mouse Combo, Wireless, USB, Spanish, Black

$38.95

* Taxes not included

HP Smart Tank 790 - All-in-One Inkjet Printer, Wireless, Color, White

$351.59

* Taxes not included

HP P24v G5 - Monitor, 23.8", Full HD 1920 x 1080, VA WLED, 16:9, 75Hz Refresh Rate, HDMI, VGA, Black

$139.98

* Taxes not included

MSI MAG A750GL PCIE5 - Power Supply, 750W, Modular, 80 Plus Gold

$120.71

* Taxes not included

ASUS TUF GAMING B760M-PLUS WIFI II - Motherboard, LGA1700, micro-ATX, Dual-Channel Architecture, Supports up to 192GB DDR5 Memory

$222.19

* Taxes not included

Specifications

Model
Brand	ASUS
Series	PRIME
Model	PRIME B860M-A
Chipset	Intel
Supported CPU
CPU Socket	LGA 1851
CPUs Supported	Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
Memory
Memory Slots	4x slots
Memory Type	DDR5
Maximum Memory	256 GB
Channel Support	Dual-Channel
Expansion Slots
PCIe 3.0	Yes
PCIe 2.0	No
PCIe 4.0	Yes
PCIe 5.0	Yes
PCIe Slots	1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1
Storage
SATA 6Gb/s	4x SATA 6Gb/s
M.2	2x M.2 Ports
SATA RAID	Yes
Intel Optane	Yes
U.2	No
Onboard Audio
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channels	7.1 Channel
Video
Onboard Video Support	Yes, depends on CPU
Rear Panel Ports
Rear Panel Ports	1 x HDMI, 1 x DisplayPort, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x RJ-45 LAN, 3 x Audio jacks
Internal Connectors
Onboard USB	USB 3.2 Gen 1 headers, USB 2.0 headers
Power Pins	24-pin ATX main power, 8-pin +12V power connector
Other connectors	Headers para ventiladores, audio frontal, RGB/A-RGB, TPM, etc.
Physical Specifications
Form Factor	Micro ATX
Dimensions(cm)	24.4 cm x 24.4 cm
LED Lighting	No
Features
Multi-GPU Support	No
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Special Features	ASUS 5X Protection III, DIGI+ VRM, ASUS OptiMem II, AI Cooling II, Aura Sync
Included in Package
Included in package	1 x User manual, 2 x SATA cables, 1 x I/O shield, 1 x Support DVD, 1 x M.2 screw package

Warranty

Warranty:
ASUS Standard Warranty

Warranty Period:
1 Year Warranty

Who do I contact if my product has issues?
You can return your product directly to Pana Compu and we will manage any warranty issues directly with ASUS for you. You may also contact ASUS directly using your Pana Compu invoice to receive your warranty. All warranty decisions are made by ASUS and are final.
